8-Port Gigabit Smart Switch CISCO SG250-08-K9-EU

Mô tả ngắn
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

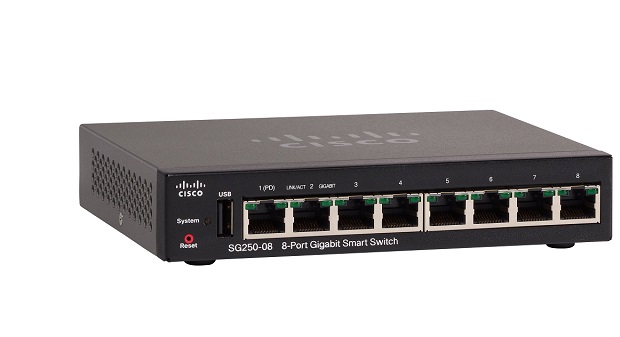

8-Port Gigabit Smart Switch CISCO SG250-08-K9-EU

- 8 10/100/1000 ports (Port 8 with PoE+ power input support).

- Performance: Switching capacity 16 Gbps, Forwarding rate 11.9 mpps wire-speed performance.

- Layer 2: Port grouping up to 4 groups, up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation.

- Layer 3: IPv4 routing Wire-speed routing of IPv4 packets up to 32 static routes and up to 16 IP interfaces, IPv6 routing Wire-speed routing of IPv6 packets, Classless Interdomain Routing (CIDR) Support for CIDR.

- PoE: PoE Power Budget: 195 W, Number of Ports That Support PoE: 24.

- QoS (Quality of Service): Priority levels 8 hardware queues, Scheduling Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service (802.1p/CoS).

Đặc tính kỹ thuật

Model SG250-08-K9-EU
Performance
Switching capacity and forwarding rate Capacity in Millions of Packets per Second (mpps) (64-byte packets): 11.9
Switching Capacity in Gigabits per Second (Gbps): 16
Jumbo frames Frame sizes up to 10 KB supported on 10/100 and Gigabit Ethernet interfaces (9 KB for SG200-08 and SG200-08P)
MAC table Up to 8,000 MAC addresses
Total system ports 8 Gigabit Ethernet
RJ-45 ports 8 Gigabit Ethernet
Layer 2 Switching
Spanning Tree Protocol (STP) Standard 802.1d STP support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Port grouping Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP): Up to 4 groups, Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08 and SG200-08P
Port-based and 802.1Q tag-based VLANs
Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Internet Group Management Protocol (IGMP) versions 1 and 2 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (16 for SG200-08 and SG200-08P)
Head-of-line (HOL) blocking HOL blocking prevention
Security
IEEE 802.1X (Authenticator role) 802.1X: RADIUS authentication, MD5 hash
Port security Locks MAC addresses to ports, and limits the number of learned MAC addresses
Storm control Broadcast, multicast, and unknown unicast
DoS prevention DoS attack prevention
Quality of Service
Priority levels 4 hardware queues
Scheduling Strict priority and weighted round-robin (WRR)
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)
Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)
Rate limiting Ingress policer, per VLAN and per port
Environmental
Dimensions (W x H x D) 160 x 30 x 128 mm
Unit weight 0.54 kg
Power 100 to 240V 50 to 60 Hz, external

- Bảo hành: 12 tháng.
