1000VA / 900W 160-280Vac, USB - Serial - Optional SNMP card, LCD Display, RJ11/45 Surge Protection, AVR, PF = 0.9
Đặc tính kỹ thuật
|
Model |

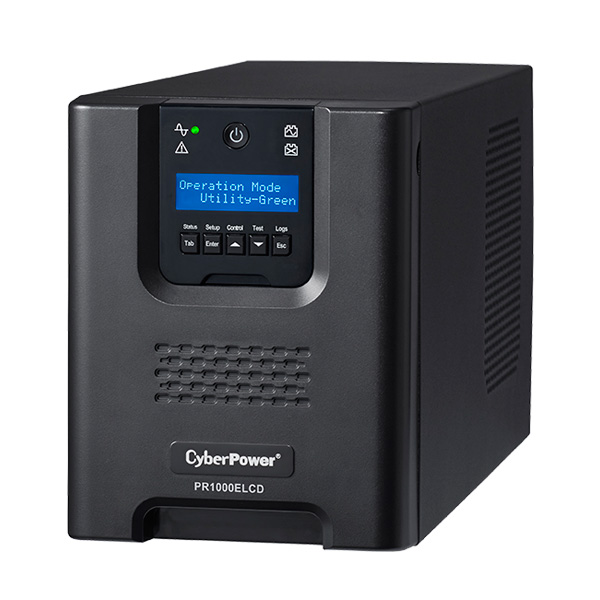

PR1000ELCD |
|
Capacity (VA/Watts) |
1000VA/ 900W |
|
Energy- Saving Technology |
Yes |
|
Input |
|
|
Input Voltage Range |
160VAC - 280VAC |
|
Frequency Range |
50/60Hz ± 3Hz (Auto-sensing) |
|
Input Plug Type |
IEC 320 C14 |
|
Output |
|
|
UPS Outlets |
(8) IEC 320 C13 |
|
On Battery Output Voltage |
Pure Sine Wave at 230Vac +/- 5% |
|
On Battery Output Frequency |
50Hz / 60 Hz +/- 1% |
|
Transfer Time (Typical) |
4ms |
|
Overload Protection |
On Utility: Internal Current Limiting & Circuit Breaker |
|
On Battery: Internal Current Limiting |
|
|
AVR |
Double Boost, Single Buck |
|
Surge Protection and Filtering |
|
|
Surge Protection |
Yes |
|
Battery |
|
|
Sealed Maintenance Free Lead Acid Battery |
12V 12AH x 2 |
|
User Replaceable |
Yes |
|
Typical Recharge Time |
8 Hours |
|
Runtimes |
|
|
Half-Load/ Full-Load (mins) |
14/4 |
|
Status Indication |
|
|
Indicators |
Power On, Online, On Battery, Fault, Replace Battery |
|
Audible Alarms |
On Battery, Low Battery, Overload |
|
Multi-Function LCD Display |
Yes |
|
Communication |
|
|
Power Management Software |
PowerPanel® Business Edition |
|
Management |
|
|
Self-Test |
Yes |
|
Auto-Charge/Auto-Restart |
Yes |
|
COM Interface |
Yes |
|
USB |
Yes |
|
SNMP/HTTP Capable |
Optional |
|
Maximum Dimensions (H x W x D) |
221 x 170 x 432 mm |
|
Weight |
18.9 kg |
