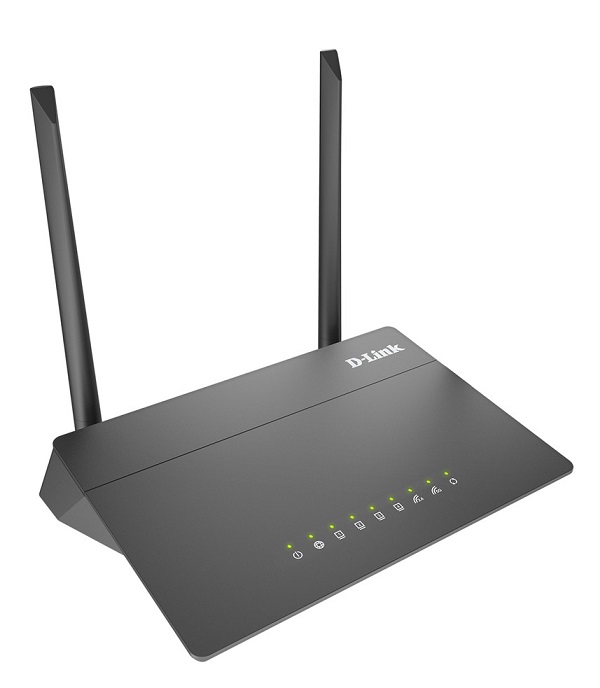

Wireless AC750 Dual Band Router D-Link DIR-806A

Mô tả ngắn
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

Wireless AC750 Dual Band Router D-Link DIR-806A

Wireless Interface

- Using the DIR-806A device, you are able to quickly create a high-speed wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). Simultaneous activity of 2.4GHz band and 5GHz band allows performing a wide range of tasks. The router can operate as a base station for connecting wireless devices of the standards 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac (at the wireless connection rate up to 733Mbps).

Secure Wireless Connection

- The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, WPS, WMM.

Advanced Capabilities of Wirelss Network

- Smart adjustment of Wi-Fi clients is useful for networks based on several D-Link access points or routers – when the smart adjustment function is configured on each of them, a client always connects to the access point (router) with the highest signal level. Support of guest Wi-Fi network allows you to create a separate wireless network with individual security settings and maximum rate limitation. Devices connected to the guest network will be able to access the Internet, but will be isolated from the devices and resources of the router's LAN.

Security

- The wireless router DIR-806A includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN. In addition, the router supports IPsec and allows to create secure VPN tunnels. Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on children's devices.

Easy configuration and update

- You can configure the settings of the wireless router DIR-806A via the user-friendly web-based interface. The configuration wizard allows you to quickly switch DIR-806A to one of the following modes: router (for connection to a wired or wireless ISP), access point, repeater, or client, and then configure all needed setting for operation in the selected mode in several simple steps. Also DIR-806A supports configuration and management via mobile application for Android and iPhone smartphones. You can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.

Specifications

Model DIR-806A
Hardware
Processor MTK7620DA (480 MHz)
RAM 64MB, DDR2, built in processor
Interfaces  10/100BASE-TX WAN port
4 10/100BASE-TX LAN ports
LEDs Power
Internet
4 LAN LEDs
2.4G WLAN
5G WLAN
WPS
Buttons POWER button to power on/power off
WIFI button to enable/disable wireless network
WPS button to set up wireless connection
RESET button to restore factory default settings
Antenna  Two external non-detachable antennas (5dBi gain for 2.4GHz and 5GHz)
One internal antenna (3dBi gain for 2.4GHz)
MIMO 2 x 2 (for 2.4GHz)
Power connector Power input connector (DC)
Software
WAN connection types PPPoE
IPv6 PPPoE
PPPoE Dual Stack
Static IPv4 / Dynamic IPv4
Static IPv6 / Dynamic IPv6
PPPoE + Static IP (PPPoE Dual Access)
PPPoE + Dynamic IP (PPPoE Dual Access)
PPTP/L2TP + Static IP
PPTP/L2TP + Dynamic IP
Network functions Support of IEEE 802.1X for Internet connection
DHCP server/relay
Advanced configuration of built-in DHCP server
Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
Automatic obtainment of LAN IP address (for access point/repeater/client modes)
DNS relay
Dynamic DNS
Static IP routing
Static IPv6 routing
IGMP Proxy
RIP
Support of UPnP IGD
Support of VLAN
WAN ping respond
Support of SIP ALG
Support of RTSP
WAN reservation
Autonegotiation of speed, duplex mode, and flow control/Manual speed and duplex mode setup
for each Ethernet port
Built-in UDPXY application
Firewall functions  Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
IP filter
IPv6 filter
MAC filter
URL filter
DMZ
Prevention of ARP and DDoS attacks
Virtual servers
Built-in Yandex.DNS web content filtering service
VPN  IPsec/PPTP/L2TP/PPPoE pass-through
IPsec tunnels
Management Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
Bilingual web-based interface for configuration and management (Russian/English)
Support of D-Link Assistant application for Android and iPhone smartphones
Notification on connection problems and auto redirect to settings
Firmware update via web-based interface
Automatic notification on new firmware version
Saving/restoring configuration to/from file
Support of logging to remote host
Automatic synchronization of system time with NTP server and manual time/date setup
Ping utility
Traceroute utility
TR-069 client
SNMP agent
Wireless Module Parameters
Standards IEEE 802.11a/n/ac
IEEE 802.11b/g/n
Frequency range  2400 ~ 2483.5MHz
5150 ~ 5350MHz
5650 ~ 5725MHz
Wireless connection security WEP
WPA/WPA2 (Personal/Enterprise)
МАС filter
WPS (PBC/PIN)
Advanced functions Support of client mode
WMM (Wi-Fi QoS)
Information on connected Wi-Fi clients
Advanced settings
Smart adjustment of Wi-Fi clients
Guest Wi-Fi / support of MBSSID
Rate limitation for wireless network
Periodic scan of channels, automatic switch to least loaded channel
Autonegotiation of channel bandwidth in accordance with environment conditions
(20/40 Coexistence)
Others
Dimensions (L x W x H) 205 x 136 x 33 mm
Power  Output: 12VDC, 0.5A
Temperature Operating: from 0 to 40 °C
Storage: from -20 to 65 °C
Humidity Operating: from 10% to 90% (non-condensing)
Storage: from 5% to 95% (non-condensing)

- Bảo hành: 24 tháng.
