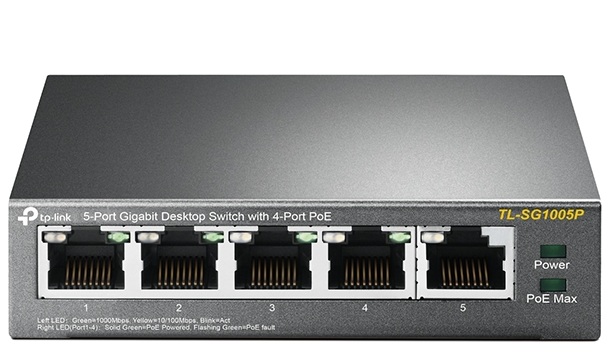

5-Port Gigabit with PoE Desktop Switch TP-LINK TL-SG1005P
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
Đặc tính kỹ thuật
| Model | TL-SG1005P |
| Hardware | |
| Interface | 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Consumption | 63.31W (max. with 56w PoE device connected) 4.26W (max. no PoE device connected) |
| External Power Supply | External Power Adapter(Output: 48VDC/ 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W |
| Backbound Bandwidth | 10Gbps |
| Mac Address Table | 2K |
| Dimensions | 99.8 x 98 x 25 mm |
| Software | |
| Advanced Features | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transfer Method | Store-And-Forward |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
