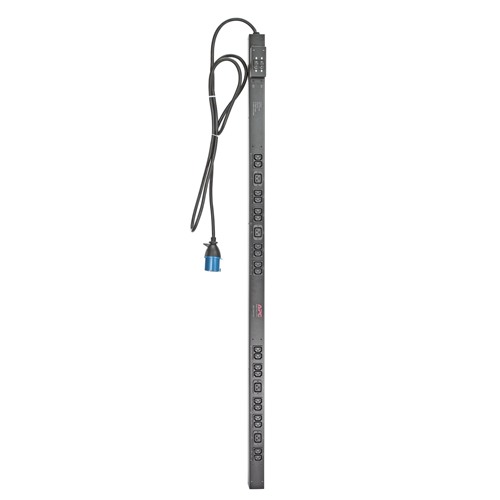

AP7553 Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

Mô tả ngắn
  • Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19
  • Includes: Installation Guide , Rack Mounting Brackets , Toolless Mounting Kit
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

Output

  • Nominal Output Voltage

    230V

  • Maximum Total Current Draw

    32

  • Output Connections

    (4) IEC 320 C19 (Battery Backup)

    (20) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage

    200V , 208V , 230V

  • Input frequency

    47 - 63 Hz

  • Input Connections

    IEC 309 32A 2P+E

  • Cord Length

    3.05meters

  • Number of Power Cords

    1

  • Load Capacity

    7360VA

  • Maximum Input Current

    32A

Physical

  • Maximum Height

    1619mm , 161.9CM

  • Maximum Width

    56mm , 5.6CM

  • Maximum Depth

    44mm , 4.4CM

  • Net Weight

    5.57KG

  • Shipping weight

    6.48KG

  • Shipping Height

    2121mm , 212.1CM

  • Shipping Width

    152mm , 15.2CM

  • Shipping Depth

    127mm , 12.7CM

  • Color

    Black

Environmental

  • Operating Temperature

    0 - 45 °C

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-3000meters

  • Storage Temperature

    -25 - 65 °C

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-15000meters

Conformance

  • Approvals

    CE, VDE

  • Standard warranty

    2 years repair or replace

Sustainable Offer Status

  • RoHS

    Compliant

  • REACH

    REACH: Contains No SVHCs

  • PEP

    Available in Documentation tab

  • EOLI

    Available in Documentation tab

  • Other Environmental Compliance

    China RoHS
