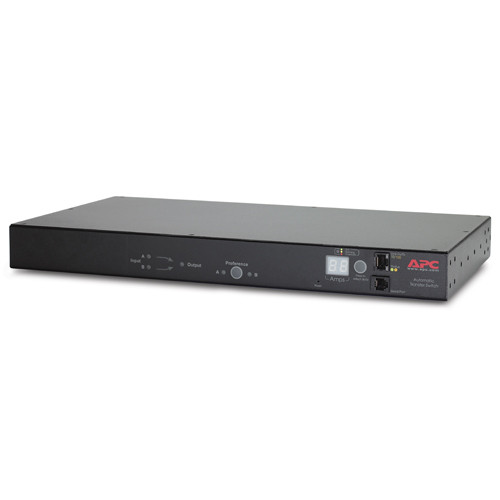

AP7723 RACK ATS, 20A/208V, 16A/230V, C20 IN, (8) C13 (1) C19 OUT

Mô tả ngắn
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

Output

  • Nominal Output Voltage

    230V

  • Overload Protection

    No

  • Maximum Total Current Draw

    16

  • Output Connections

    (1) IEC 320 C19 (Battery Backup)

    (8) IEC 320 C13 (Battery Backup)

Input

  • Nominal Input Voltage

    200V , 208V , 230V

  • Input frequency

    47 - 63 Hz

  • Input Connections

    IEC-320 C20

  • Maximum Input Current

    20A

  • Maximum Line Current

    20A

Physical

  • Maximum Height

    44mm , 4.4CM

  • Maximum Width

    432mm , 43.2CM

  • Maximum Depth

    229mm , 22.9CM

  • Rack Height

    1U

  • Net Weight

    3.93KG

  • Shipping weight

    5.7KG

  • Shipping Height

    114mm , 11.4CM

  • Shipping Width

    600mm , 60.0CM

  • Shipping Depth

    349mm , 34.9CM

  • Color

    Black

Environmental

  • Operating Temperature

    -5 - 45 °C

  • Operating Relative Humidity

    5 - 95 %

  • Operating Elevation

    0-3000meters

  • Storage Temperature

    -25 - 65 °C

  • Storage Relative Humidity

    5 - 95 %

  • Storage Elevation

    0-15000meters

Conformance

  • Approvals

    cUL Listed, CE, EN 55022 Class A, FCC Part 15 Class A, UL Listed

  • Standard warranty

    2 years repair or replace

Sustainable Offer Status

  • RoHS

    Compliant

  • REACH

    REACH: Contains No SVHCs

  • PEP

    Available in Documentation tab

  • EOLI

    Available in Documentation tab

  • Battery Directive

    Compliant

  • Other Environmental Compliance

    China RoHS
