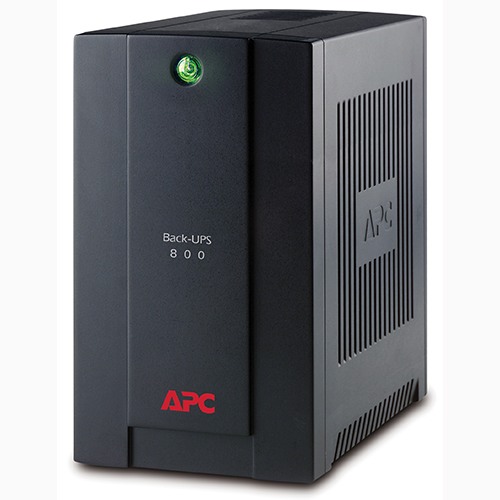

APC Back-UPS BX800LI-MS 800VA, 230V, AVR, Universal and IEC Sockets

Mô tả ngắn
  • APC Back-UPS 800VA, 230V, AVR, Universal and IEC Sockets
  • Includes: User Manual , Warranty card
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

Output

  • Output power capacity: 415Watts / 800VA

  • Max Configurable Power (Watts): 415Watts / 800VA

  • Nominal Output Voltage: 230V

  • Output Frequency (sync to mains): 50/60 Hz +/-1 Hz

  • Output Frequency (not synced): 50/60 Hz +/-1 Hz

  • Topology: Line Interactive

  • Waveform type: Stepped approximation to a sinewave

  • Output Connections: (1) IEC 320 C13 (Battery Backup)

  • Transfer Time: 4ms typical : 6ms maximum

Input

  • Nominal Input Voltage: 230V

  • Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections: IEC-320 C14, NEMA 5-15P

  • Cord Length: 1.22meters

  • Input voltage range for main operations: 140 - 300V

  • Number of Power Cords: 1

  • Type of Input Protection Required: 3-pole breaker

  • Maximum Input Current: 7.0A

  • Input Power Factor at Full Load: 0.52

Batteries & Runtime

  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

  • Included Battery Modules: 1

  • Typical recharge time: 6hour(s)

  • Replacement Battery: APCRBC110

  • Expected Battery Life (years): 2 - 4

  • Runtime:

    • View Runtime Graph

    • View Runtime Chart

  • Efficiency: View Efficiency Graph

Communications & Management

  • Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating: 273Joules

Physical

  • Maximum Height: 200mm , 20.0CM

  • Maximum Width: 115mm , 11.5CM

  • Maximum Depth: 256mm , 25.6CM

  • Net Weight: 6.5KG

  • Shipping weight: 6.7KG

  • Shipping Height: 290mm , 29.0CM

  • Shipping Width: 205mm , 20.5CM

  • Shipping Depth: 345mm , 34.5CM

  • Color: Black

Environmental

  • Operating Temperature: 0 - 40 °C

  • Operating Relative Humidity: 0 - 95 %

  • Operating Elevation: 0-3000meters

  • Storage Temperature: -15 - 40 °C

  • Storage Relative Humidity: 0 - 95 %

  • Storage Elevation: 0-9000meters

  • Audible noise at 1 meter from surface of unit: 45.0dBA

Conformance

  • Approvals: CE, WEEE

  • Standard warranty: 2 years repair or replace

Sustainable Offer Status

  • RoHS: Compliant

  • REACH: REACH: Contains No SVHCs
