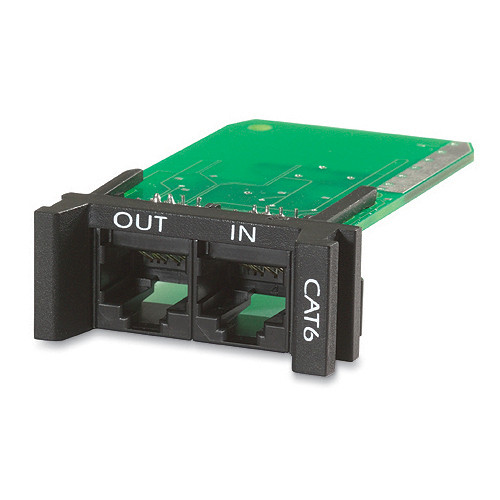

APC PNETR6 Surge Module for CAT6 or CAT5/5e Network Line, Replaceable, 1U, use with PRM4 or PRM24 Chassis

Mô tả ngắn
  • APC Surge Module for CAT6 or CAT5/5e Network Line, Replaceable, 1U, use with PRM4 or PRM24 Chassis
  • Protects an ethernet data port from damaging transients. Supports Cat5, Cat5E and Cat6 cabling standards. Compatible with Power Over Ethernet (POE) and network speeds up to 10GbE (10GigE).
  • Includes: User Manual
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

Output

  • Number of Outlets

    1.0

Surge Protection and Filtering

  • Data Line Protection

    RJ45 10/100/1000 Base-T Ethernet protection

  • Data Lines Protected
    (multi-line only)

    1

  • Peak Current Common Mode

    0.25kAmps

  • Peak Current Normal Mode

    0.2kAmps

Physical

  • Maximum Height

    44mm , 4.4CM

  • Maximum Width

    19mm , 1.9CM

  • Maximum Depth

    69mm , 6.9CM

  • Rack Height

    1U

  • Net Weight

    0.02KG

  • Shipping weight

    0.04KG

  • Shipping Height

    99mm , 9.9CM

  • Shipping Width

    33mm , 3.3CM

  • Shipping Depth

    95mm , 9.5CM

  • Color

    Black

  • Master Carton Dimensions (Length x Width x Height)

    638 x 413 x 207mm

  • Master Carton Units

    96.0

  • Master Carton Weight

    6.01

  • SCC Codes

    3073130421718 4

Environmental

  • Operating Temperature

    -15 - 45 °C

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-3000meters

  • Storage Temperature

    -15 - 45 °C

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-3000meters

Conformance

  • Approvals

    UL 497B, UL Recognized

  • Standard warranty

    Lifetime
