Bộ báo cháy-Báo trộm trung tâm NetworX NX-8E 16 ZONE

Mô tả ngắn
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

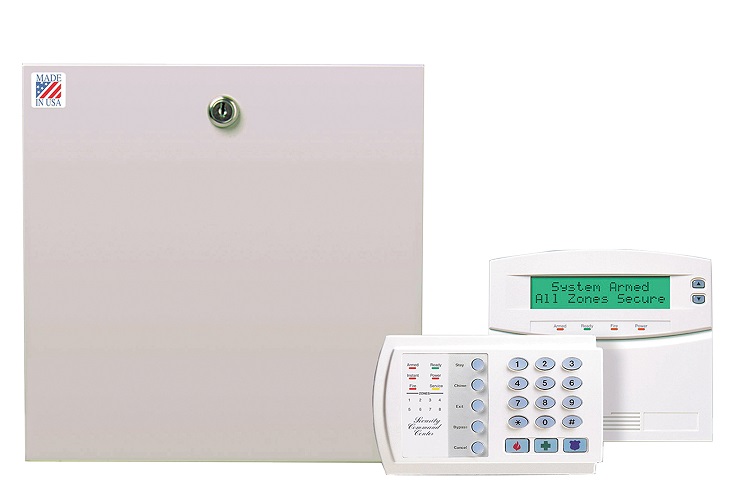

Bộ báo cháy-Báo trộm trung tâm NetworX NX-8E 16 ZONE

- The most convenient, flexible, durable and user-friendly control panel ever seen.

- Featuring sophisticated software which allows up to 240 users to interface with 192 zones and 8 partitions.

- The NetworX design allows a fully loaded system to be housed in one single metal enclosure, establishing a logical solution and design response to modular systems. Up to 32 modules can be added to expand the capabilities of the NX8-E.

- Fire alarm verification for greater false alarm immunity.

- Dynamic battery test.

- Standard RS-232 on-board interface.

Specifications

Supply voltage (typical) 230 Vac, +- 10% 50 Hz
Operating power (nominal) 16.5 Vac / 50 Hz 40 VA
Current consumption min. 60 mA
Battery max. 12 V / 17 Ah
Auxiliary power 2 A with 40 VA transformer
On-board siren driver 112 dB, 2 tones (steady/yelp)
Operating temperature 0° to 50°C
Enclosure dimensions   290 x 290 x 95 mm (w x h x d)
small enclosure
385 x 460 x 119 mm (w x h x d)
commercial enclosure
Weight (small enclosure) 3.9 kg (incl. transformer and tamper
Weight (big enclosure) 8.6 kg (incl. transformer and tamper & stand-offs

- Bảo hành: 12 tháng.
