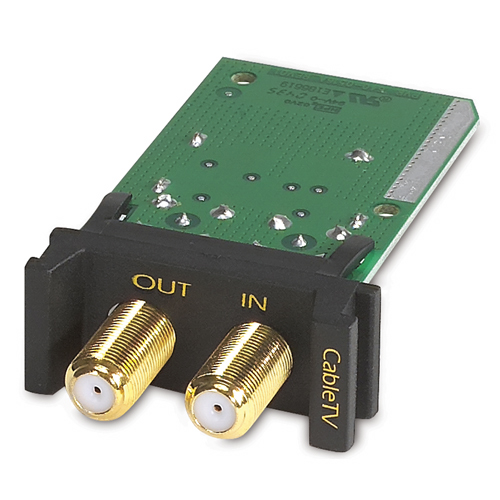

PVR REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE

Mô tả ngắn
  • REPLACEABLE, RACKMOUNT, 1U, SINGLE LINE, CableTV SURGE PROTECTION MODULE
  • Includes: User Manual
  • Giá:
    Liên hệ
Tổng quan về sản phẩm

Output

  • Number of Outlets

    1.0

Surge Protection and Filtering

  • Data Line Protection

    Cable modem / Video protection, Co-axial Video / Cable protection

  • Data Lines Protected
    (multi-line only)

    1

  • ts_nm_surge_response

    1ns

  • Peak Current Common Mode

    0.5kAmps

  • Peak Current Normal Mode

    0.2kAmps

Physical

  • Maximum Height

    44mm , 4.4CM

  • Maximum Width

    19mm , 1.9CM

  • Maximum Depth

    69mm , 6.9CM

  • Net Weight

    0.06KG

  • Shipping weight

    0.28KG

  • Shipping Height

    99mm , 9.9CM

  • Shipping Width

    33mm , 3.3CM

  • Shipping Depth

    95mm , 9.5CM

  • Color

    Black

  • Master Carton Units

    96.0

  • SCC Codes

    3073130421719 1

Environmental

  • Operating Temperature

    -15 - 45 °C

  • Operating Relative Humidity

    0 - 95 %

  • Operating Elevation

    0-3000meters

  • Storage Temperature

    -15 - 45 °C

  • Storage Relative Humidity

    0 - 95 %

  • Storage Elevation

    0-3000meters

Conformance

  • Approvals

    UL 497B, UL Recognized

  • Standard warranty

    Lifetime

Sustainable Offer Status

  • RoHS

    Compliant

  • Other Environmental Compliance

    China RoHS
